Description

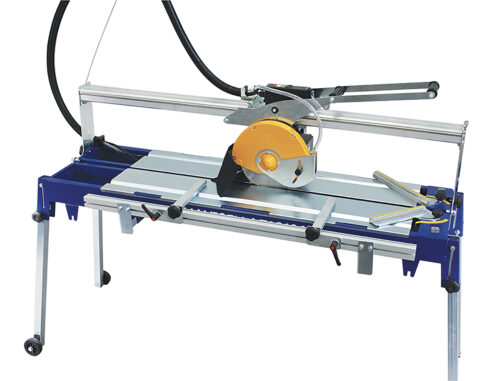

Bridge saw with disc Ø 250 × 25.4 ( 10″x 1″) mm specific for porcelain tiles included, to cut tiles up to 120 cm in porcelain ceramic, even of high thickness, marble and granite, up to a maximum height of 5.5 cm (2″).
Informations
| IMBALLO PRODOTTI | cm 160 x 90 x 92 63'' x 36'' x 37'' |
|---|---|
| Q.TÀ PER PALLET | 2 |
| PEZZI PER BOX | 1 |
| PESO | kg 90 |
The MAXIBELLA TOP 120 is equipped with the following components:
– foldable legs for transport – 1100 W motor (1,5 HP) – direct transmission from motor to disc – self-releasing switch with magnetothermic protection – cooling with water pump and flow adjustment tap – square for linear and diagonal cuts, – square for diagonal cuts – 115 x 45 cm wide cutting surface. The motor unit sliding on four adjustable iron pulleys can also be tilted at 45 °, with the possibility of locking the desired height.
Cutting dimensions: Linear 120 cm (47″) – Jolly (45°) 120 cm (47″) – Diagonal 84 x 84 cm (33″x33″) – Maximum thickness 5.5 cm (2″).
DETAILS AND ACCESSORIES ON REQUEST: Side extension for large sizes with adjustable stops art.61120P; specific diamond discs for marble and granite; rear feet with wheels. Special voltages available.
