Description
Bridge saw with blade Ø 250 × 25.4 mm ( 10″x 1″) specific for porcelain tiles included, to cut tiles up to 120 cm in porcelain ceramic, even of high thickness. With specific blades it is also possible to cut marble and granite, up to a maximum height of 5.5 cm (2″).
Informations
| IMBALLO PRODOTTI | cm 160 x 90 x 92 63'' x 36'' x 37'' |
|---|---|
| Q.TÀ PER PALLET | 2 |
| PEZZI PER BOX | 1 |
| PESO | kg 90 |

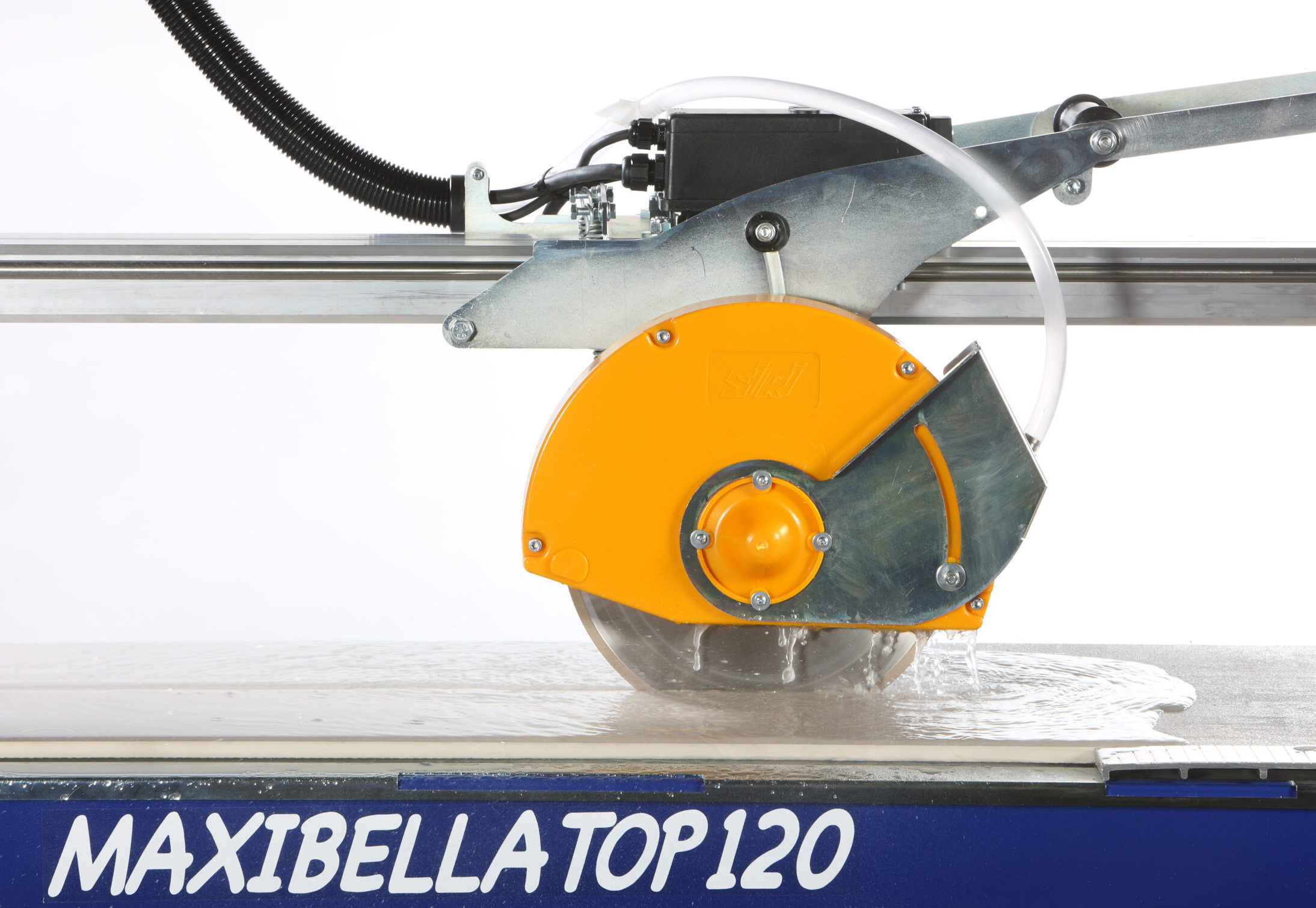

The MAXIBELLA TOP 120 is equipped with the following components:
– foldable legs for transport – 1500 W motor (2 HP) – direct transmission from motor to disc – self-releasing switch with magnetothermic protection – cooling with water pump and flow adjustment tap – square for linear and diagonal cuts, – square for diagonal cuts – 115 x 45 cm wide cutting surface. The motor unit sliding on four adjustable iron pulleys can also be tilted at 45 °, with the possibility of locking the desired height.
Cutting dimensions: Linear 120 cm (47″) – Jolly (45°) 120 cm (47″) – Diagonal 84 x 84 cm (33″x33″) – Maximum thickness 5.5 cm (2″).
DETAILS AND ACCESSORIES ON REQUEST: Side extension for large sizes with adjustable stops art.61120P; specific diamond blades for marble and granite; rear feet with wheels. Special voltages available.
